AGV Automation Kit
Description

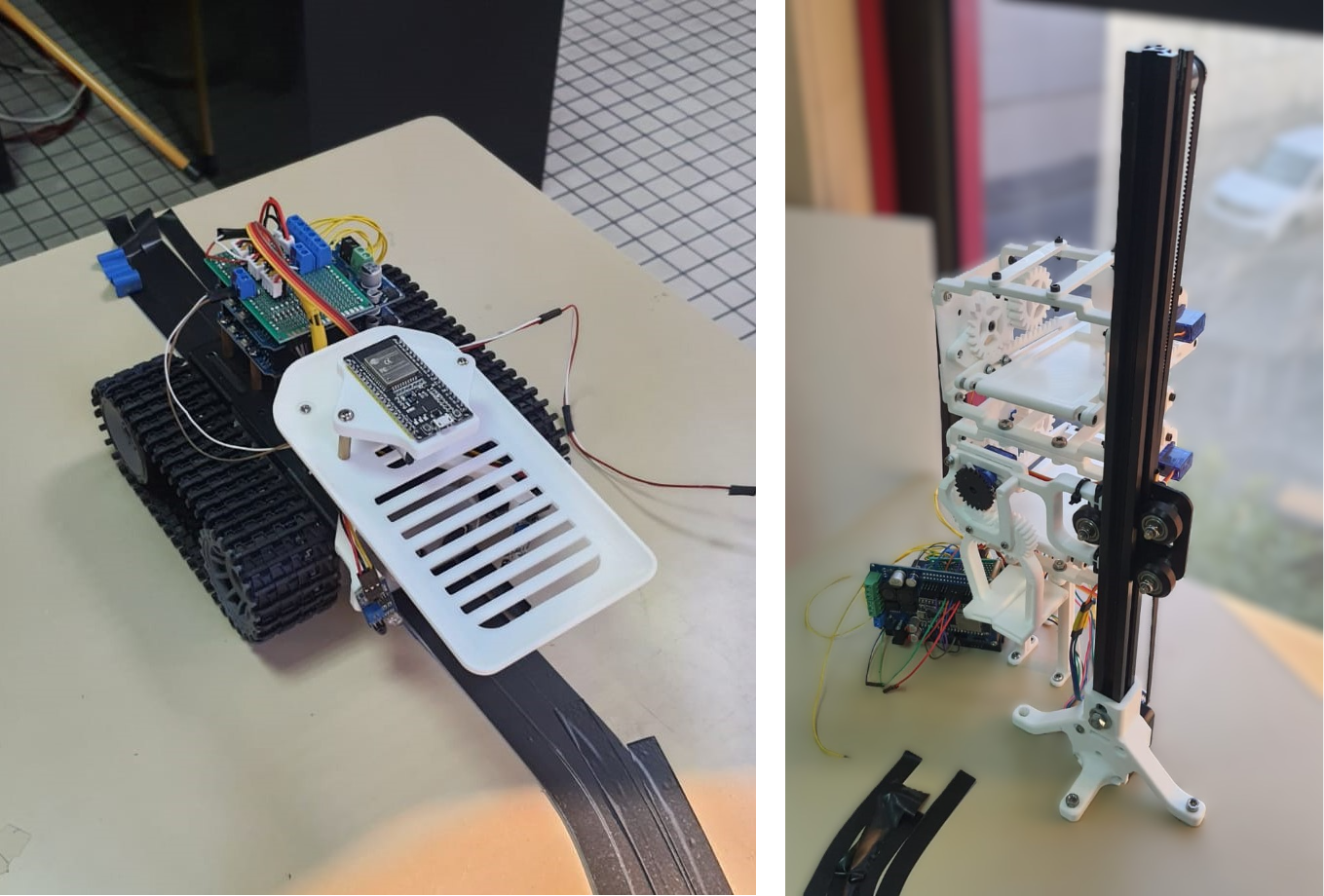

This AGV (Autonomous Guided Vehicle) system combines a line-following robot with a two-level elevator mechanism, providing an excellent platform for learning electronics, programming, and mechanical design. The robot follows a predefined path using IR sensors while the ESP32 microcontroller controls its movement. The elevator system, equipped with gears and servo motors, allows precise object transfer between levels. This project demonstrates key concepts such as control systems, CAD modeling, and automation, making it ideal for educational use. It offers students hands-on experience in robotics while promoting teamwork and problem-solving skills.
Objective
Design an AGV system that combines line-following navigation with an elevator mechanism for automated object transfer.
Method
The system uses an ESP32 microcontroller to control the robot's movement and elevator operations. IR sensors enable line-following, while servo motors and a lead screw mechanism control the elevator.
Practical Applications
Ideal for warehouse automation simulations, smart manufacturing models, and educational robotics projects.
Key Features
This AGV system features a line-following robot equipped with IR sensors for accurate path tracking and an ESP32 microcontroller for precise control. The integrated dual-level elevator mechanism uses servo motors and a lead screw system to ensure smooth and stable object transfer. The combination of modular design, efficient control algorithms, and reliable hardware makes the system versatile for various automation and educational applications.
Learning Outcomes
Students will develop skills in control systems, programming, electronics, and mechanical design while enhancing problem-solving abilities and teamwork.
Functional In/Out Diagram
The functional diagram above illustrates the main components of the system and their interactions:
Input: will become
Process: will become
Output: will become
Posted on 2025-03-18 08:58:30
We’re excited to introduce our new AGV system designed for educational and practical applications. This system features a line-following robot equipped with IR sensors for precise path tracking and an ESP32-based control system for smooth navigation. Additionally, a dual-level elevator mechanism allows the robot to pick up or place objects efficiently using servo motors and a lead screw system. This AGV system is ideal for teaching control systems, automation concepts, and mechanical design, offering students a hands-on experience in robotics and smart manufacturing. Perfect for both learning and practical demonstrations!
